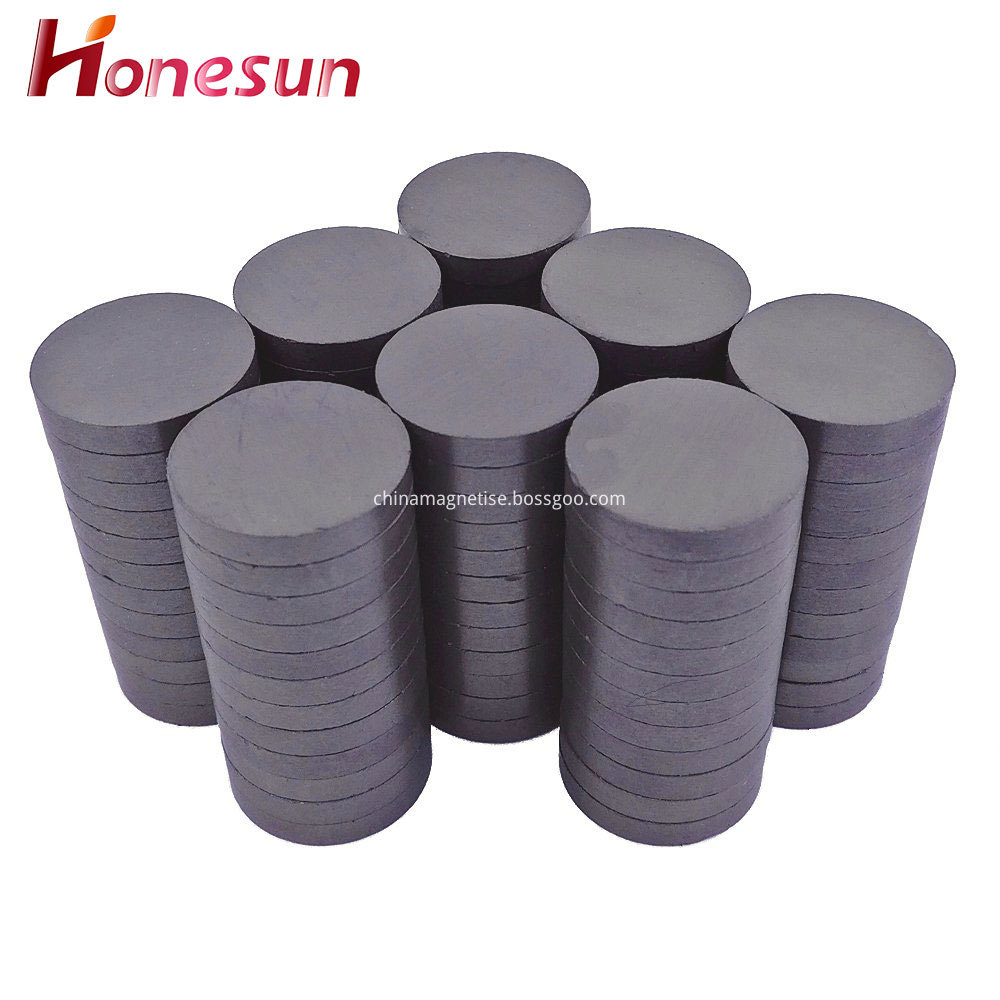

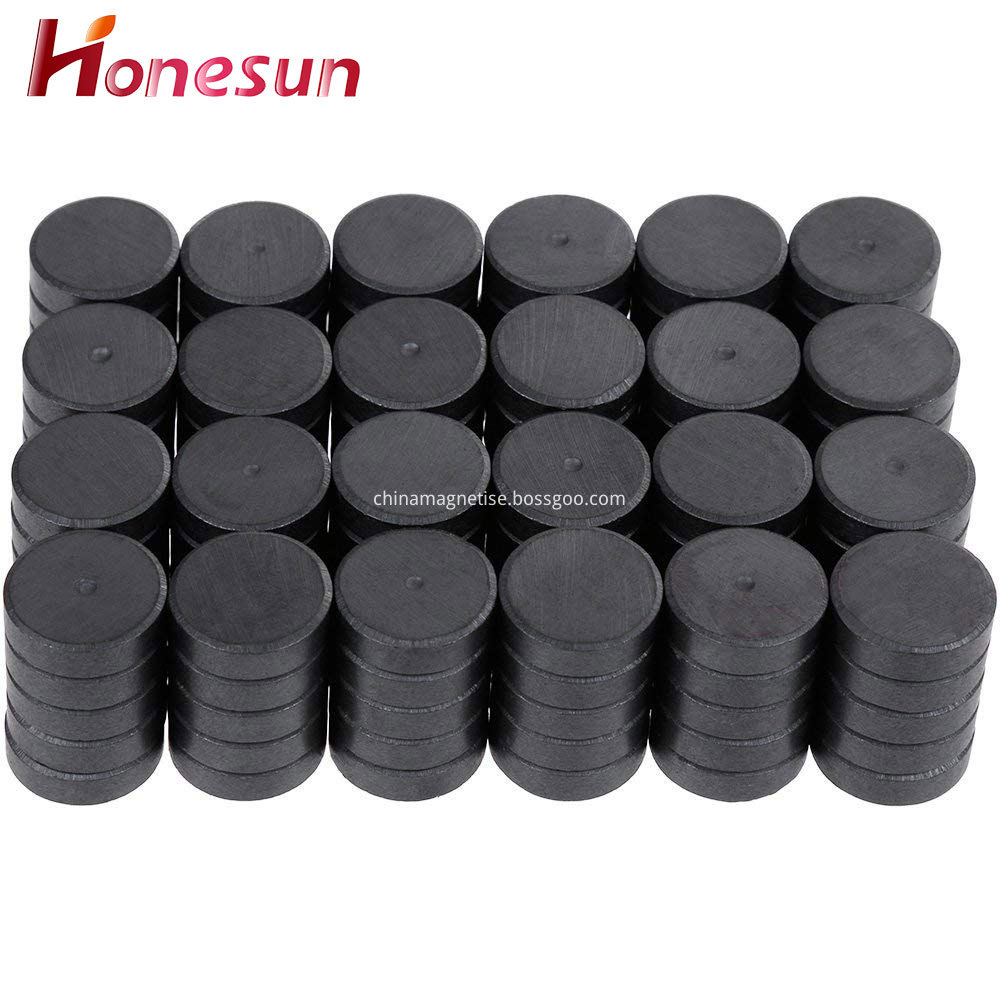

C5 round ferrite ceramic magnets industrial disc magnet

  • C5 round ferrite ceramic magnets industrial disc magnet
  • C5 round ferrite ceramic magnets industrial disc magnet

C5 round ferrite ceramic magnets industrial disc magnet

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 100 Piece/Pieces
    Delivery Time: 15-25 Days
    Packaging: Sealed plastic bag-White box-Foam box-Cartons-Pallet or Case
    Productivity: 60 Ton/Tons per Month
    Brand: HONESUN
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 60 Ton/Tons per Month
    Certificate: ISO9001:2001
    HS Code: 8505190090
    Port: SHANGIHAI,NINGBO,All Chinese Port

Basic Info

Model No.: HD-Fe

Product Description

C5 round ferrite ceramic magnets industrial disc magnet

Ferrite Material: The cheapest magnetic material, main contents including ferric oxide, barium and strontium.
Grade:Y25 , Y30 ,Y33,Y35,Y30BH,Y35BH
Magnet Shape:Ferrite Arc and more Customized shapes are available
Features: A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion & demagnetization. However, it has lower energy levels (Br) and is brittle in nature. Applications: Dc motors, Louder speakers, Magnetic Separators, Automotive Sensors, Educations, etc.

Product Name
C5 round ferrite ceramic magnets industrial disc magnet
Material
Ferrite
Plating
No
Size
customized sizes
Grade
Y28,Y30,Y30BH,Y35,C5
Magnetization
Axial
Sample
Available
Used
industry machinery

Grade Br HcB Hcj (BH)max
KGs mT kOe Ka/m kOe Ka/m MGOe Kj/m³
Y10T 2.00~2.35 200~235 1.57~2.01 125~160 2.64~3.52 210~280 0.81~1.19 6.5~9.5
Y25 3.60~4.00 360~400 1.70~2.20 135~175 1.76~2.51 140~200 2.80~3.50 22.5~28.0
Y30 3.70~4.00 370~400 2.20~2.64 175~210 2.26~2.77 180~220 3.30~3.77 26.0~30.0
Y30BH 3.80~4.00 380~400 2.80~3.46 223~275 2.85~3.65 227~290 3.40~4.10 27.0~32.5
Y33 4.00~4.30 400~430 2.76~3.14 220~250 2.83~3.20 225~255 3.96~4.40 31.5~35.0
Y35 4.00~4.20 400~420 2.20~2.70 175~222 2.26~2.80 180~241 3.80~4.20 30.0~33.0
Y35AH 400~410 4.00~4.10 2.60~2.8 200~225 2.7~2.90 210~230 3.90~4.10 31.0~33.0
Y36 430~450 4.30~4.50 3.10~280 240~275 3.14~3.42 250~270 4.40~4.80 35.0~38.0
Y38 440~460 4.40~4.60 3.58~3.83 285~305 3.69~3.89 294~310 4.60~5.10 36.6~40.6
Y40 440~460 4.40~4.60 4.15~4.45 330~354 4.27~4.52 340~360 4.70~5.20 37.6~41.8

Ferrite MagnetSintered Ferrite Magnet

1

2

3

1. Q:What information do I need to supply when I have an inquiry?

A: If you have any inquiry, please kindly advise the following items:

Dimensions, sizes, shape and drawing with tolerances.

Material grade or magnetic properties.

Magnetic direction, quantity. Surface coating (if necessary).

2. Q: What about the sample time and charge?

A: (1) 7-10 days if you want to customize your logo, charge according to your design

(2) 1-3 days for our existing samples for reference

(3) sample charge: if in stock, can be free.
